Used for slicing and flat cutting processes of aluminum, plastic and wooden profiles.
• Wide profile cutting with Ø 500 mm saw blade
• Servo driven automatic profile feeding and batch slicing
process

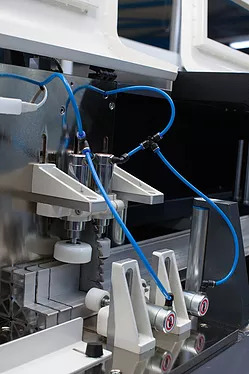

• Automatic clamping system
• Cutting speed adjustment
• Digital adjustment of the saw blade travel distance based on
the profile
• Secure cutting by the cover equipped with a safety sensor
• Touchscreen control panel
• Process programming and large memory
• Conveyor carrying capacity of 500 kg
• Standard Conveyor Length is 4m
• Manual Cutting Speed Adjustment
• 0.2 mm cutting accuracy
• Minimum Cutting Dimension is 5 mm.
• 270 mm waste length
