GEMINI - IV SA

18″ Double Head Cutting Machine – Semi-Automatic

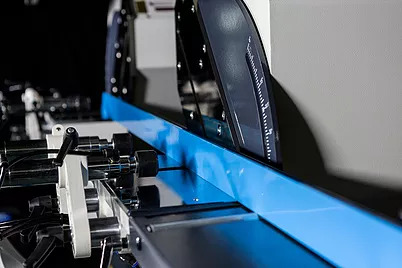

GEMINI – IV SA, double head front blade saw with 450 mm sawblade with semi-automatic 1 axis servo control, is an ideal option for cutting aluminium and PVC profiles in different angles and thicknesses. GEMINI – IV SA performs quick hydro-pneumatic angle positioning in 2 inclination models of -45°, 90° and 90°, 45° angles, while the heads that perform manual positioning in all other intermediate angles provide a perfect cutting process. While providing the cutting processes of profiles with a minimum length of 400 mm and a maximum of 4040 mm simultaneously with two heads, it also eliminates the limits in cutting of profiles. While increasing the cutting quality with its automatic horizontal and vertical clamps and profile support unit, GEMINI – IV SA also prioritizes safety.

AXIS TRAVEL
Hydro-pneumatic controlled rotation axis of head ●
Hydro-pneumatic cutting feed adjustment ●
Rapid angle positioning of heads hydro-pneumatically 45° and 90°
Minimum cutting length with double head (90°/45°) 400 mm / 560 mm
Maximum internal rotation angle (internal tilt / external tilt) 45° / 90°
Maximum cutting length with double head (90°/45°) 4040 mm / 4040 mm
Maximum external rotation angle (internal tilt / external tilt) 90° / -45°
ELECTRICAL
Maximum power 5,7 kW
Frequency 50-60 Hz
450 mm Saw Blades
2.2kW – 3HP
Voltage 220v 3-Phase
AIR
Pressure 6-8 Bar
Consumption 120 L/min
POSITIONING SPEED
X axis positioning speed 40 m/min
OPERATIONAL AREA
Cemented carbide saw blade
Saw blade diameter
Saw blade motor power
Profile height measurement (outer slope model) ●
Optional length in X-axis ○
Cutting zone protection covers ●
Horizontal pneumatic clamps ●
Vertical pneumatic clamps ●
Intermediate profile support (pcs)
Additional intermediate profile support ○
Manual intermediate profile support ●
Roller conveyor on moving head ●
Fixed head conveyor ○
Spray saw cooling system
Saw blade travel digital speed adjustment ○
Saw blade travel speed adjustment ●
Slicing mode at 90°
Barcode printer ○
Data transfer via remote network connection, Ethernet and USB
Control panel
10″ Touch screen
Compatibility with powder suction system
Digital display for angular positioning of the head ○
Oz Machine Soft cut (Cutting optimization program) ○
Chip Drawer Unavailable
● Standard ○ Optional
